1814E High Production, Oil-Conserving Electric Fryers

1814E High Production, Oil-Conserving Electric Fryers

Specifically designed to handle high production demands of a varied menu while conserving space, energy and oil

The 11814E large capacity electric fryers have 60-lb. (30 liter) frypot oil capacity with an 18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm) cooking area. The ability to cook three baskets of food in an 18” x 14” x 4-1/4” cooking area allows for footprint, oil use and energy use reductions over standard 50-lb fryers. Two 11814E fryers can do the work of three standard fryers. The savings add up quickly using 15-20% less oil, upwards of 33% less energy, and 10-15% less space.

Frymaster’s proprietary self-standing, swing-up, flat-bar, low-watt density, long-life heating elements and controls ensure industry-leading energy efficiency.

The robust RTD, 1° Compensating temperature probe, mounted on the elements, ensures precise temperature readings. The thermostat system minimizes temperature overshoot maximizing oil life. It also compensates for variations in cooking loads, consistently producing high-quality food.

The Lane controller has programmable cook buttons and features that make it easy to produce consistent, great-tasting food. The Digital Timer, CM3.5, and 3000 controller options are also available.

The bottom of the frypots are sloped toward the front and are equipped with a large drain line so crew members can quickly flush out sediment and remove old oil.

The built-in filtration models make it easy to preserve oil life and maintain food quality. The built-in filter utilizes an 8 GPM (30 LPM pump and is equipped with a 3” (7.61 cm) drain line, making filtering fast, safe and easy. The “built-in” feature puts filtration within the fryer battery where it’s most convenient to use.

*Not available for CE.

Features
Technical Specifications
Accessories
Videos
Downloads

Design
18″ x 14″ x 4-1/4″ (45.7 x 35.6 x 10.8 cm) frying area per 60-lb. electric frypot

Input
11814E & 11814EF = 17 kw

21814EF & 31814EF = 17 kw per frypot

Controller
Lane controller has programmable cook buttons and features that make it easy to produce consistent, great-tasting food.

Elements
Proprietary, self-standing, swing-up, flat-bar low-watt density long-life heating elements.

Temperature probe
Robust, RTD, 1° compensating temperature probe.

Construction
Stainless steel frypot, front and cabinet sides

Basket hanger
Sturdy, stainless steel, over-the-flue basket hangers.

Baskets
Three twin — 11814E & 11814EF models

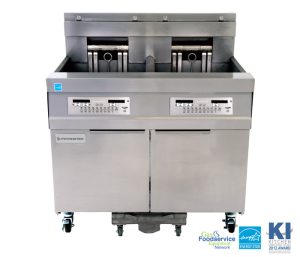

Six twin — 21814EF model

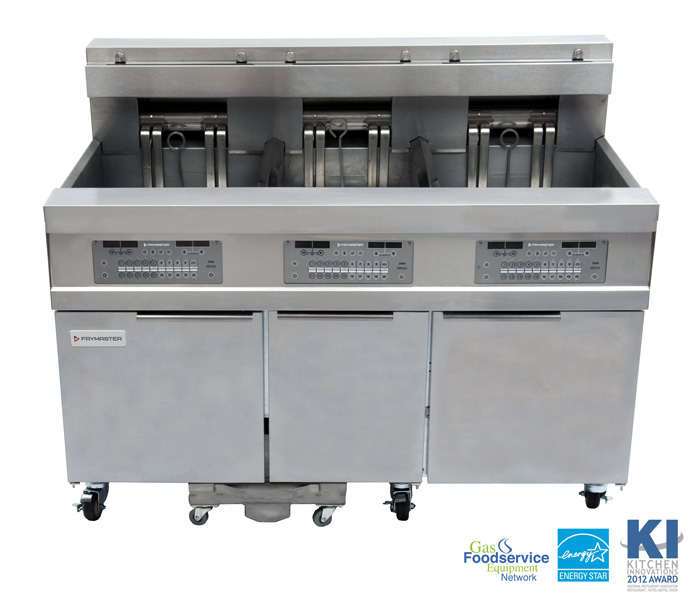

Nine twin — 31814EF model

Built-in Filtration
1814EF, 21814EF, and 31814EF models come standard with built-in filtration

Casters on Filter Models
11814EF, 21814EF, and 31814EF models come standard with casters

Basic Information
AC Type	Split Type
Technology	Non-Inverter
Capacity	1.5 Ton
Capacity of Cooling (BTU)	18,000 BTU
Compressor Type	Rotary
Condenser Type	Golden Fin Condenser
Refrigerant Type	R32A
Power
Power Type	1Ph,220-230V, 50Hz
Power Consumption	1500 Watts
Physical Specification
Dimensions	Indoor: 1013 x307 x221mm Outdoor: 889 x596 x378mm
Weight	Indoor: 13.5 kg Outdoor: 42 kg
Color	White
Warranty Information
Warranty	Official Warranty: 05 Years Compressor & 01 Year Parts Warranty. (Gree Warranty card must be kept for warranty claims.) For warranty claims, please contact the Gree distributor directly through the official customer service hotline at 16649, 09678333666.

Filtration Built-in filtration for 11814E
	Bulk Oil Dispose and fresh fill on batteries with built-in filtration
	External Oil Discharge (dispose only) Available on built-in filter batteries of two or more frypots. Must specify front or rear connection. Front connection comes with 5′ washdown hose (precludes bulk rear oil discharge)
	Controller Digital, CM3.5, and SMART4U^® 3000
	Frypot covers Stainless steel
	Chicken/Fish Plate
	Baskets Chicken, full, dual, quad
	Casters Included on filter models
	Crisper Tray
	Splash Shield
